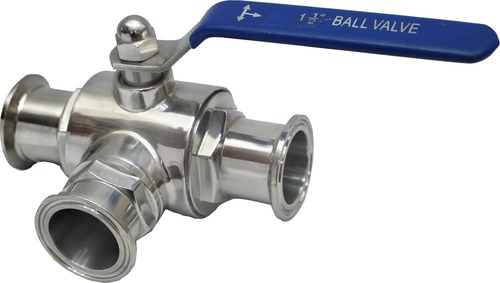

Stainless Steel TC End Ball Valve

Product Description

A Stainless Steel TC (Tri-Clamp) End Ball Valve refers to a type of ball valve that is designed with Tri-Clamp end connections. Tri-Clamp, also known as Tri-Clover or sanitary clamp, is a widely used connection system in the food and beverage, pharmaceutical, and biotechnology industries. It provides a secure and hygienic way to connect and disconnect pipes and equipment.

Here are some key features and considerations for a Stainless Steel TC End Ball Valve:

1. Material: The valve is made from stainless steel, which offers corrosion resistance and is suitable for applications where hygiene and cleanliness are critical.

2. Tri-Clamp Connection: The Tri-Clamp end connections allow for quick and secure connections to other components in a processing system. This is especially important in industries where frequent disassembly and cleaning are required.

3. Quarter-Turn Operation: Like other ball valves, a TC end ball valve operates on a quarter-turn mechanism. This means the valve can be fully opened or closed by rotating a ball within the valve body.

4. On/Off Control: Ball valves, including those with Tri-Clamp ends, are commonly used for on/off control, providing a tight seal when closed to prevent fluid leakage.

5. Sanitary Design: The Tri-Clamp end connections and stainless steel construction contribute to a sanitary design, making the valve suitable for applications in industries with strict cleanliness standards, such as the food and pharmaceutical industries.

6. Cleanability: Stainless steel TC end ball valves are designed for easy disassembly and cleaning. The Tri-Clamp connections facilitate the removal of the valve from the processing system for cleaning and maintenance.

7. Applications: These valves are often used in industries where sanitary conditions are crucial, such as dairy processing, breweries, wineries, pharmaceutical manufacturing, and biotechnology.

8. Sizes and Configurations: Stainless steel TC end ball valves are available in various sizes and configurations to meet the specific requirements of different processing systems.

9. Actuation Options: Depending on the application, TC end ball valves can be manually operated using a handle or lever, or they can be automated with pneumatic or electric actuators for remote control.

10. Compliance with Standards: Valves used in sanitary applications are often designed to comply with industry standards and regulations related to food safety and hygiene. Compliance with standards such as those set by the Food and Drug Administration (FDA) or the European Hygienic Engineering and Design Group (EHEDG) may be important.
